Dashboard

Estimated reading: 3 minutes 166 views

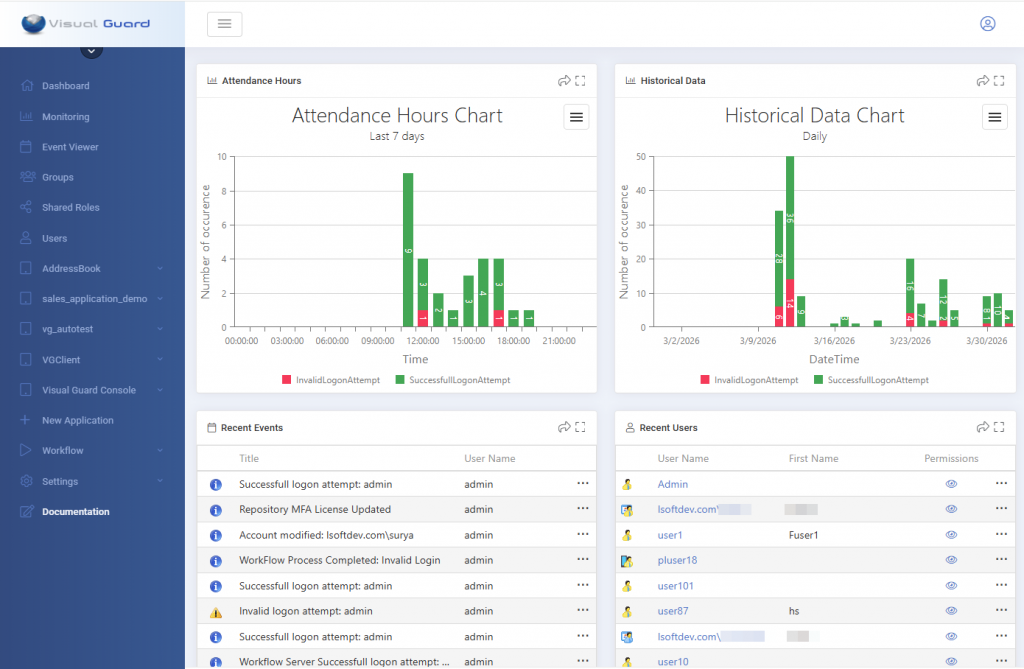

The Dashboard of the Visual Guard WebConsole is the Homepage of the website.

It present itself this way:

There are five main elements on this page:

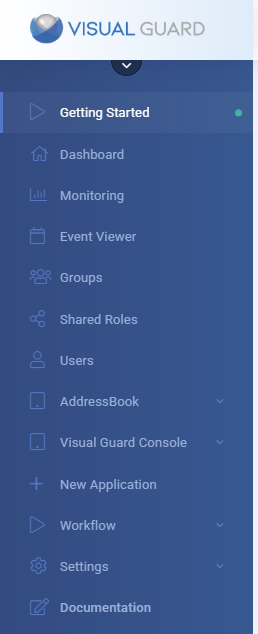

  • The general menu on the left panel : All the sections are listed
  • Monitoring : This page explains the details of the websites and list all the registered attendances and events of the users
  • Event Viewer: This page list all the events that has occurred on the websites with the following dates and the users doing the actions: the using of an application, an attempt of login that has been successful /unsuccessful.
  • Groups: All the users groups are listed with their details. A search bar and a menu is displayed with all the actions available on the groups.
  • Shared Roles: All the shared roles are listed with their details. A search bar and is displayed with all the actions available on the roles.
  • Users: All the Users are listed with their details. A search bar and is displayed with all the actions available on the users.
  • Applications: All the applications are displayed in the general menu.
  • Workflow
  • Settings

Attendance Hours Chart

  • The Attendance Hours chart : this is divided in to part: In read Invalide Log on Attempt and in green Success Full log on Attempt. This is the number of logins in the last 7 days.
  • By clicking on the small curved arrow on the top, it leads on the corresponding monitoring page
  • By clicking on the small square, the page will open in full screen.

Historical Data Chart

  • The Historical data chart: this is divided in to part: In read Invalide Log on Attempt and in green Success Full log on Attempt. This is the number of occurence in date time.
  • By clicking on the small curved arrow on the top, it leads on the corresponding monitoring page
  • By clicking on the small square, the page will open in full screen.

By clicking on this icon, the printing menu shows as below:

  • Print
    • PNG file
    • JPEG file
    • PDF file
    • SVG file

Recent Events

  • The list of Recent Events: this list resume the number of login attempts and by who.
  • By clinking on the “…” , the data details will open as shown below.
    • By clicking on the blue informations “I” on the left, the users details will open as below:

Recent Users

  • The list of Recent Users : this list resume the recent connected users on the visual guard web console.
  • You can audit the permissions of the users bu-y clicking on the eye icon.
  • The blue person icon stands for the persons who do not have the right to be connected on the VG administration console.
  • The yellow person icon stands for the persons who have the right to be connected on the VG administration console.
