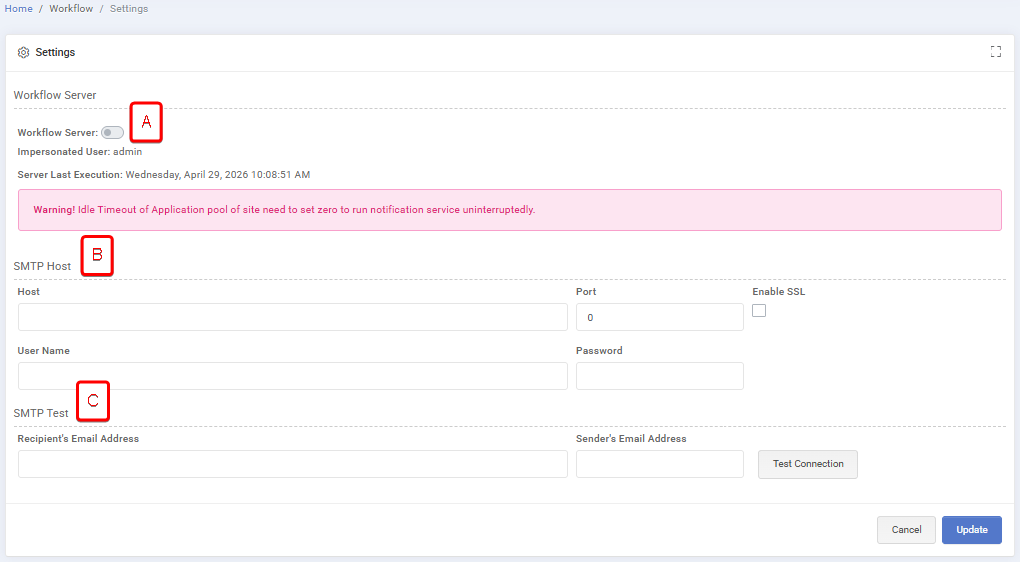

Settings

The Workflow is a system meant to personalized notifications or actions in the Visual Guard Webconsole.

• Workflow Server: Enables or disables the workflow server

• SMTP Host: Defines the mail server used to send notifications
  • Host: The SMTP server address eg. smtp.company.com
  • Port: Port number used by the SMTP server
  • Enable SSL: Checkbox to enable secure email transmission
  • Username & Password: SMTP authentication username & password
• SMTP Test:
  • Recipients Email Address: Email address where the test email will be sent.
  • Sender’s Email Address: Email address used as the sender of the test email.
  • Test Connection: Validates SMTP configuration and connectivity.
• Update: Saves and applies changes to workflow server and SMTP configuration.

---

How to connect to Office 365

The user needs to have the rights to send emails by Office 365

Connect to Office 365 portal (https://portal.office.com/adminportal)

Go to active user and select your user

Click on “Manage email apps”

Check the option “Authenticated SMTP”

The username needs to be use for the email FROM

---
