Generate Permission Matrix

The Generate Permission Matrix feature in Visual Guard provides a clear and structured view of how roles and permissions are assigned within a group. Instead of manually reviewing access configurations, this feature allows administrators to generate a consolidated document that maps roles to their associated permissions, making access control easier to understand and manage.

---

What is a Permission Matrix?

A permission matrix is a tabular representation that shows:

• Roles assigned to a group
• Permissions linked to each role
• The overall access structure within the application

It acts as a snapshot of the current access configuration, helping administrators quickly analyze who has access to what.

---

How It Works

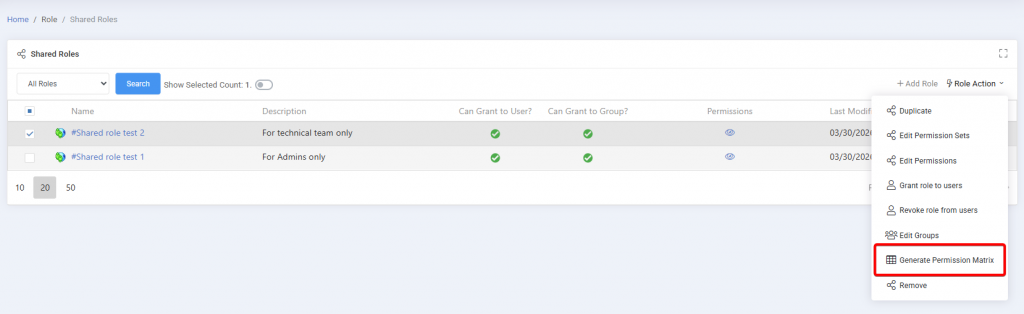

Step 1: Navigate to the Shared Groups section in the WebConsole –> Select the desired group –> Go to Role Actions –> Click on Generate Permission Matrix

---

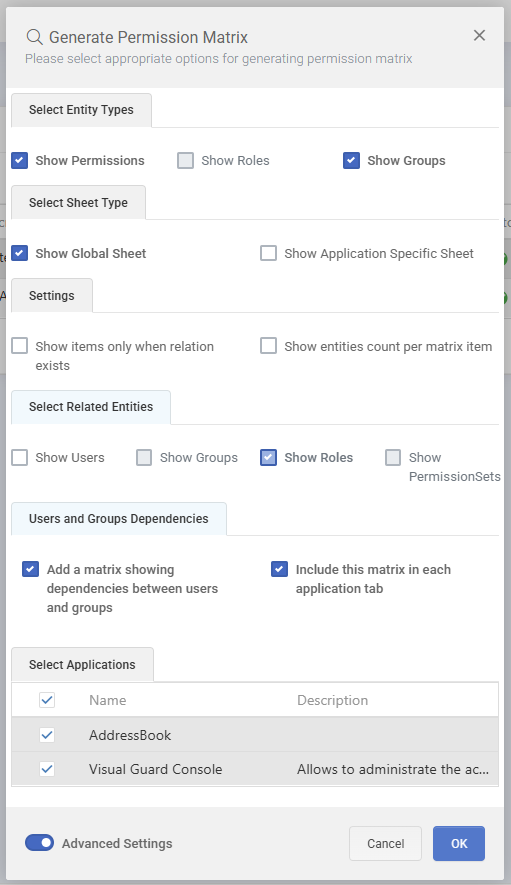

Step 2: Choose the appropriate options for generating permission matrix –> click on OK

---

An excel file will be generated and saved in your downloads.

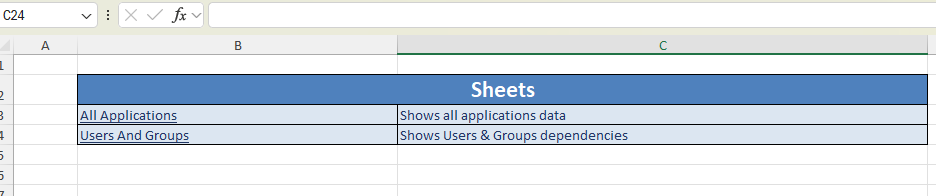

Sample screenshot of the output below. You can click on All Applications or Users And Groups cell to get more information.

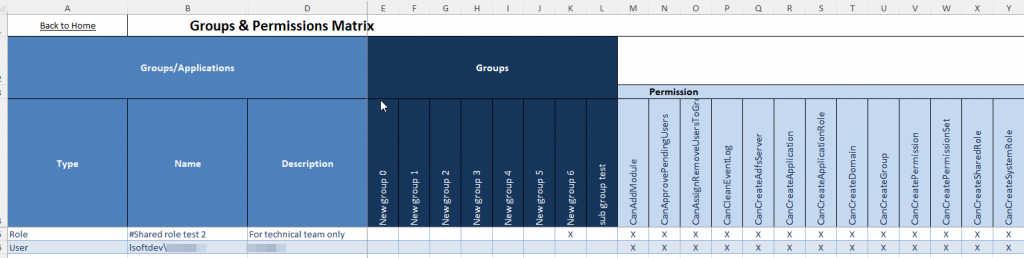

All Applications Output

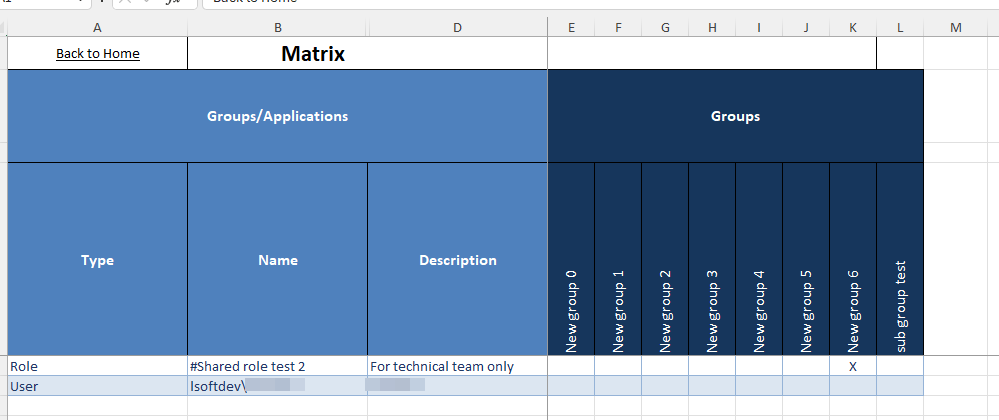

Users And Groups Output

---
